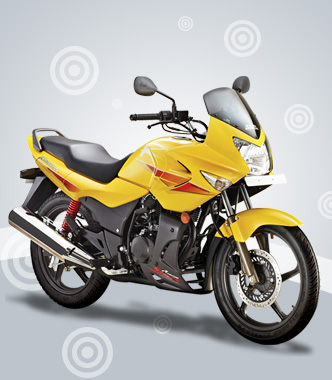

Karizma
Karizma
Price:   76,811 *
Specifications



Type

Displacement

Max. Power

Max. Torque

Max. Speed

Acceleration

Bore x Stroke

Carburettor


Compression Ratio

Starting

Ingnition



Air cooled, 4-stroke single cylinder OHC

Power 223 CC

12.68 kW (17 BHP ) at 7000 rpm

18.35 N-m @ 6000 rpm

125 kmph

0 to 60 kmph In 3.8 Seconds

65.5 x 66.2 mm

VE, constant vacuum carburetor with CCVI (Carb Controlled Variable Ignition)

9:1

Kick start + Self start

AMI -Advanced Microprocessor



Cluch

Gear box

Chassis Type



Multiplate wet

5 Speed constant mesh

Diamond Frame



Front
Rear



Telescopic hydraulic shock absorbers

Swing arm with 5 step adjustable type hydraulic shock absorber



Front Brake

Rear Brake Drum



Disc, Dia 276 mm Disc

Internal expanding shoe type (130 mm)



Tyre Size Front

Tyre Size Rear



2.75 x 18 -42P

100/90 x 18 - 56P



Battery

Head Light


Tail Stop Lamp

Turn Signal Lamp



12 V - 6 Ah, MF 7 (MF battery)

35W / 35W - Halogen bulb (Multi-reflector -D.C type)

5 / 21W x 2 Nos (Multi reflector)

21W x 4 Nos (Amber bulb) (Clear lens multi-reflector)



Length

Width

Height

Wheelbase

Ground Clearance

Fuel Tank Capacity

Reserve

Kerb Weight



2125 mm

755 mm

1160 mm

1355 mm

150 mm

15 ltrs. (Min)

2 ltrs.

150 kgs

  Glamour Color
