CD Dawn

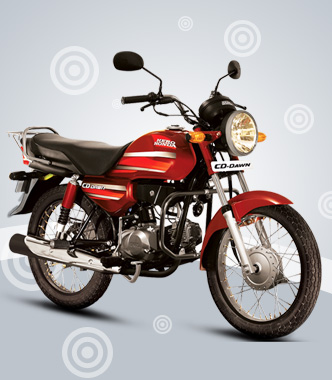

CD Dawn
Price:   39,976 *
Specifications



Type

Displacement

Max. Power

Max. Torque

Bore x Stroke

Compression Ratio

Starting

Ingnition



Air cooled 4 - stroke single cylinder OHC

97.2 cc

5.74 kW ( 7.8 Ps ) at 7500 rpm

0.82 Kg-m ( 8.04 N-m ) @ 4500 rpm

50.0 x 49.5 mm

9.0 :1

Kick start

DC - Digital CDI



Clutch

Gear box

Chassis Type



Multiplate wet

4 Speed constant mesh

Tubular double cradle frame



Front

Rear



Telescopic hydraulic shock absorbers

Swing arm with 2 step adjustable hydraulic shock absorber



Front Brake


Rear Brake Disc



Internal expanding shoe type ( 130 mm ) Non -asbestoes type

Internal expanding shoe type ( 110 mm ) Non -asbestoes type



Rim Size Front

Rim Size Rear

Tyre Size Front

Tyre Size Rear



18 x 1.6 Spoke wheels

18 x 1.6 Spoke wheels

2.75 x 18 - 4 PR / 42 P

2.75 x 18 - 6 PR/ 48 P



Battery

Head Light

Tail Stop Lamp

Turn Signal Lamp



12 V -2.5 Ah

12V - 35/35W ( Halogen bulb ) , Round MF

R 12V - 5 / 21 W - MFR

12V - 10W x 4 nos – MFR



Length

Width

Height

Wheelbase

Saddle Height

Ground Clearance

Fuel Tank Capacity

Reserve

Kerb Weight



1965 mm

720 mm

1045 mm

1235 mm

805 mm

165 mm

10.5 Ltrs

1.8 Ltrs

Kick 109 kgs.

  Glamour Color
